Full collection / Travel Chargers / Omni Travel Charger · Europe
EuropeOmni Travel Charger · EuropeTÜV Rheinland Certified6 configurations
Included with your charger

AS-16A3P + AS-SK13A

The product image shows these two included adaptors and seven optional adaptors, sold separately.

Optional Power Adaptors

AS-32A3P compatible power adaptorAS-32A3PSold separatelyCEE 32 A · 3 phaseAS-32A1P compatible power adaptorAS-32A1PSold separatelyCEE 32 A · 1 phaseAS-16A1P compatible power adaptorAS-16A1PSold separatelyCEE 16 A · 1 phaseAS-UK10A compatible power adaptorAS-UK10ASold separatelyUKAS-IT10A compatible power adaptorAS-IT10ASold separatelyItalianAS-CH8A compatible power adaptorAS-CH8ASold separatelySwissAS-DM6A compatible power adaptorAS-DM6ASold separatelyDanish

ONE SYSTEM. MORE DESTINATIONS.

Omni Travel Charger · Europe

Your charging routine, with room to roam.

Omni-Connect brings a push-to-lock, press-and-pull connection to European travel charging. Swap the approved adapter for the destination, while Smart Amp-Sync identifies the connection and sets the current. Choose a charger power version around your vehicle and supply.

A good fit for

Drivers who want one charger for several verified European outlets, with the correct adapter for each location.

M2-7M-50007.36 kW · 32 A · 1-PhaseCable Length: 5 mPower Connectivity: Omni-ConnectSmartApp: Tuya Wi-Fi / Bluetooth Low Energy (BLE) · SmartApp supported
Pricing announced at launchExplore now · no payment collected
Full specifications ↓Ask a product question ↗

MORE THAN A NUMBER ON THE BOX.

What it means
for your everyday.

01

A quick, deliberate connection

The modular coupling is designed for a positive push-to-lock fit and a press-and-pull release. Use only the approved Omni-Connect adapters.

02

Automatic current matching

Smart Amp-Sync reads the adapter type, so the current setting follows the permitted connection rather than a guess.

03

Domestic adapters get their own limits

The catalog lists reduced operating current for Schuko, UK, Italian, Swiss and Danish options, with thermal monitoring on the specified domestic adapters.

04

Durability at the contact

Silver-plated beryllium-copper contacts and overmolded construction support repeated connections. The catalog describes a 10,000+ mating-cycle design.

CHOOSE THE VERSION THAT FITS.

One family. Clear differences.

Model-by-model comparison
Reference modelCable LengthPowerCurrentPhasesVehicle connectorPower ConnectivitySmartApp
M2-7M-50005 m7.36 kW32 A1Omni-ConnectOmni-ConnectTuya Wi-Fi / Bluetooth Low Energy (BLE) · SmartApp supported
M2-7M-75007.5 m7.36 kW32 A1Omni-ConnectOmni-ConnectTuya Wi-Fi / Bluetooth Low Energy (BLE) · SmartApp supported
M2-11M-50005 m11 kW16 A3Omni-ConnectOmni-ConnectTuya Wi-Fi / Bluetooth Low Energy (BLE) · SmartApp supported
M2-11M-75007.5 m11 kW16 A3Omni-ConnectOmni-ConnectTuya Wi-Fi / Bluetooth Low Energy (BLE) · SmartApp supported
M2-22M-50005 m22 kW32 A3Omni-ConnectOmni-ConnectTuya Wi-Fi / Bluetooth Low Energy (BLE) · SmartApp supported
M2-22M-75007.5 m22 kW32 A3Omni-ConnectOmni-ConnectTuya Wi-Fi / Bluetooth Low Energy (BLE) · SmartApp supported

THE COMPLETE PICTURE.

Specifications you can compare.

Shared specifications
SpecificationDetail
Vehicle connectionIEC Type 2
Operating temperature−25°C to +45°C
AltitudeUp to 2,000 m
Residual-current protectionAC 30 mA + DC 6 mA leakage protection
ControlsA key: current · C key: delay · LCD status display

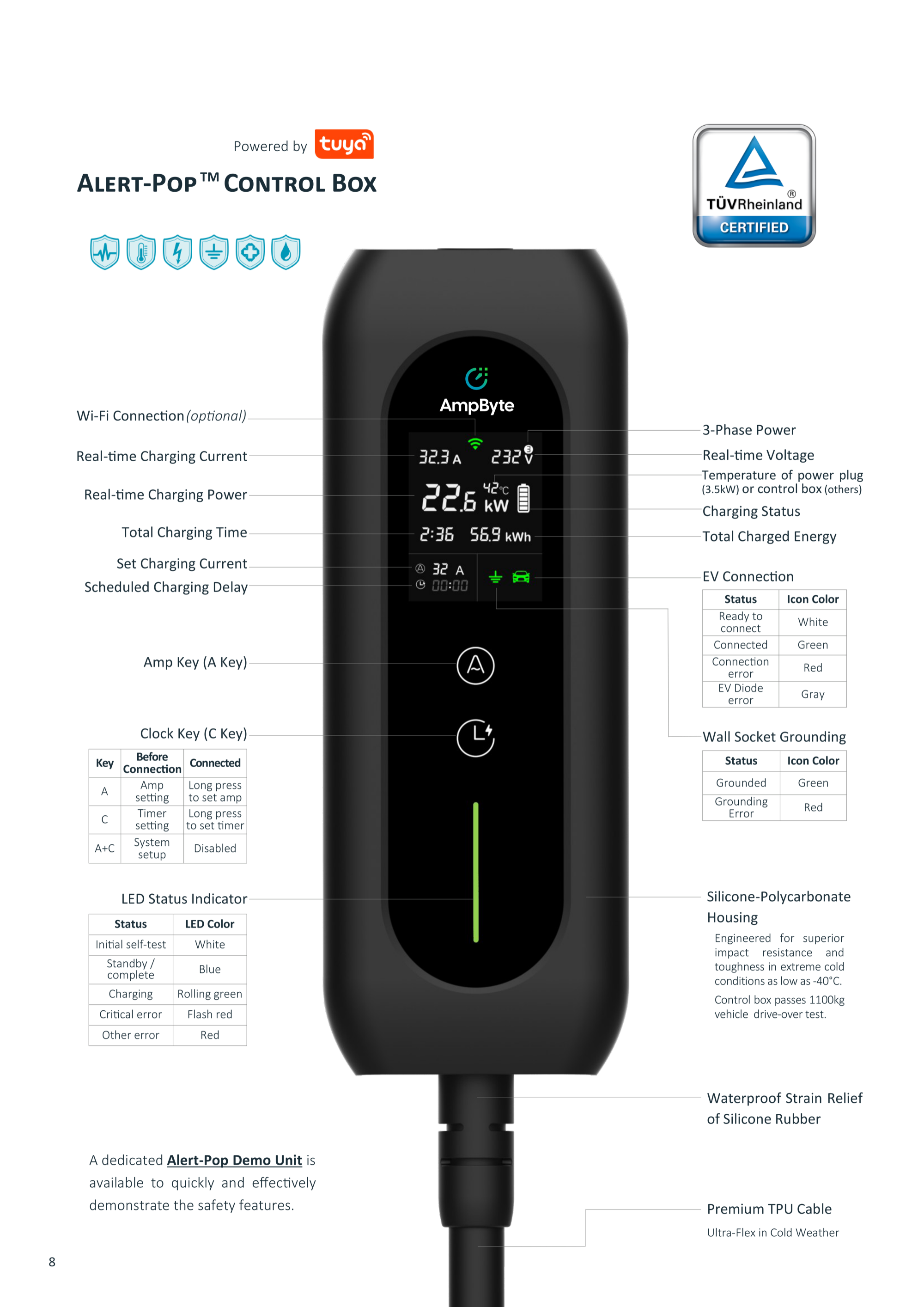

Storage−40°C to +85°C · ≤95% RH
Control boxIP66
Modular connectorIP65
EV connectorIP54
Cable jacketTPU
Adapter recognitionSmart Amp-Sync automatic current setting
Supply frequency50 Hz
SmartAppAll configurations: Tuya Wi-Fi/Bluetooth · SmartApp supported
Cable length5 m / 7.5 m · selected by model suffix -5000 / -7500
Cable by configuration
ModelCable conductorOutside diameter
M2-7M-50006.0 mm² × 3 cores13.2 mm
M2-7M-75006.0 mm² × 3 cores13.2 mm
M2-11M-50002.5 mm² × 5 cores13.2 mm
M2-11M-75002.5 mm² × 5 cores13.2 mm
M2-22M-50006.0 mm² × 5 cores16.2 mm
M2-22M-75006.0 mm² × 5 cores16.2 mm

Data from the supplied September 2026 engineering catalog, page(s) 18–19. Actual charging power is limited by the vehicle, charger, cable, adapter and available supply. Ratings refer to the listed component and operating conditions. Final SKU documents govern installation and regional approvals.

MAKE EVERY CONNECTION COUNT.

Omni-Connect · Europe

Explore this adapter system ↗

The same adapter can produce different power on different charger versions. Domestic options use the reduced operating current shown. Do not substitute Flex-Link adapters.

Adapter modelPower connectionOperating currentM2-7MM2-11MM2-22M
AS-32A3PCEE 32 A · 3 phase32 A7.36 kW11 kW22 kW
AS-16A3PCEE 16 A · 3 phase16 A3.68 kW11 kW11 kW
AS-32A1PCEE 32 A · 1 phase32 A7.36 kW3.68 kW7.36 kW
AS-16A1PCEE 16 A · 1 phase16 A3.68 kW3.68 kW3.68 kW
AS-SK13ASchuko13 A3.0 kW3.0 kW3.0 kW
AS-UK10AUK10 A2.3 kW2.3 kW2.3 kW
AS-IT10AItalian10 A2.3 kW2.3 kW2.3 kW
AS-CH8ASwiss8 A1.8 kW1.8 kW1.8 kW
AS-DM6ADanish6 A1.4 kW1.4 kW1.4 kW

Catalog reference: 18–19. Final bundle contents and local approvals vary; use only the exact approved combination.

CHOOSE THE RIGHT CONNECTED EXPERIENCE.

Hardware first.
Features that fit.

Tuya Wi-Fi/Bluetooth supports SmartApp. Solar Only and app-based DLB require a compatible meter and activated features.

Explore smart energy features ↗

Before you choose

  • Match the exact model and connection to your vehicle and supply.
  • Confirm cable length, adapters and accessories included in the final offer.
  • Confirm connectivity, firmware and any feature activation.
  • Check the final regional product documents and installation requirements.
View original engineering catalog ↗Download SmartApp guide ↓Prepare a support question ↗
